JENSEN  "IMPERIAL"

SPEAKERS

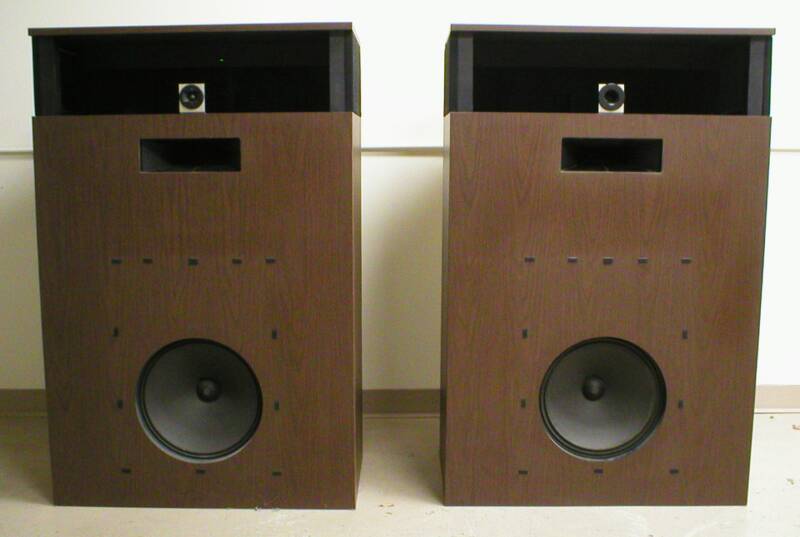

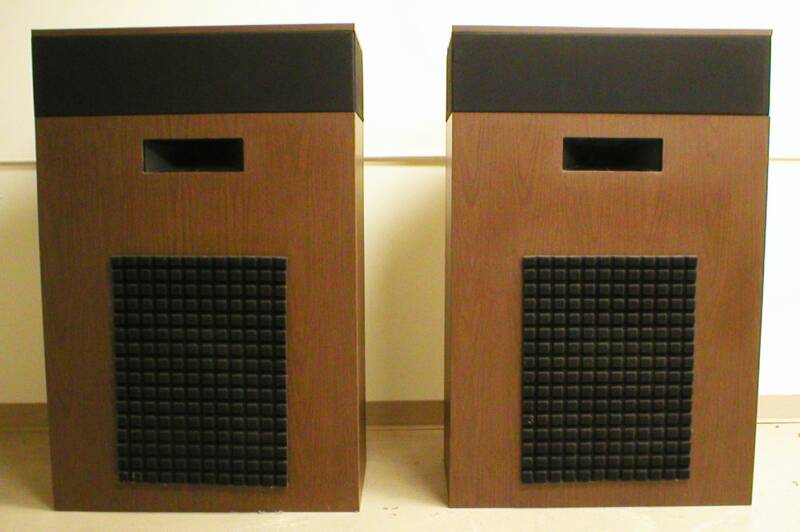

This is a pair of Jensen Imperials in custom enclosures that were built around 1980 using the original 1956 Jensen folded horn plans.

These large enclosures are super efficient and were made from 7-ply cabinet grade plywood. The outside surfaces are covered in walnut grained laminate (Formica).

Although the cabinets appear to be identical, there are some slight variations in the components. To simplify the descriptions, we will refer to them as "Unit #1" and "Unit # 2".

UNIT   # 1

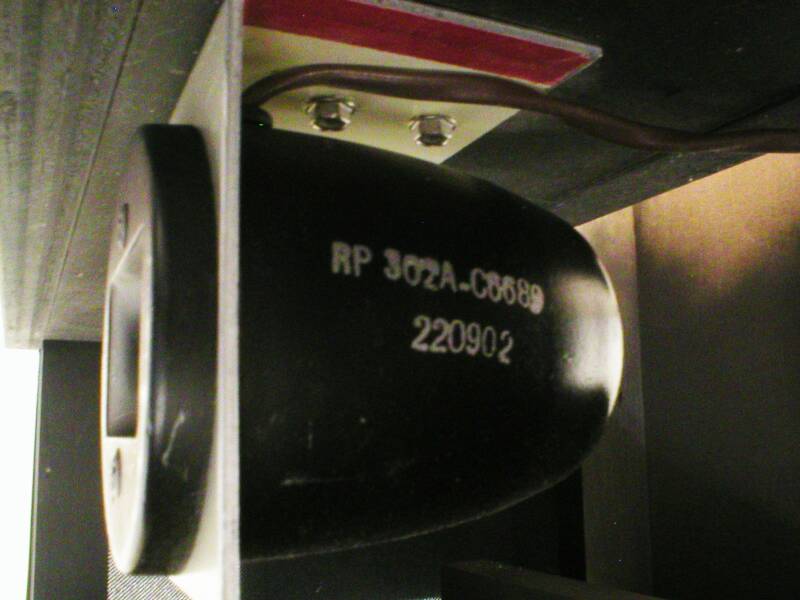

The tweeter (shown here inverted) is model number RP302A with a date code of 220902 (2nd week of 1959)

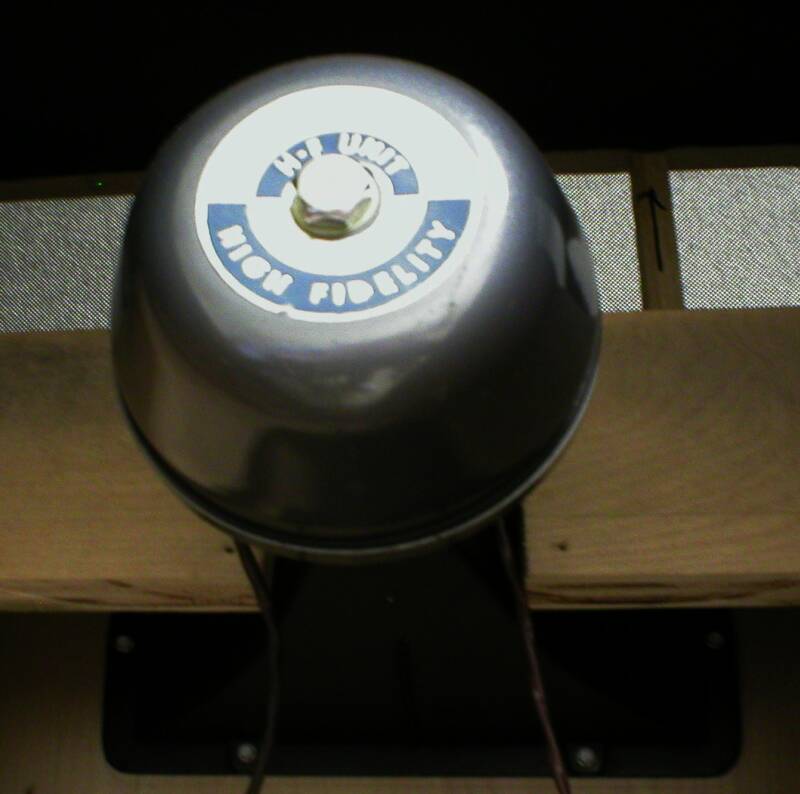

The High Frequency Horn is model number RP201 although a date code is not visible without removing from the cabinet.

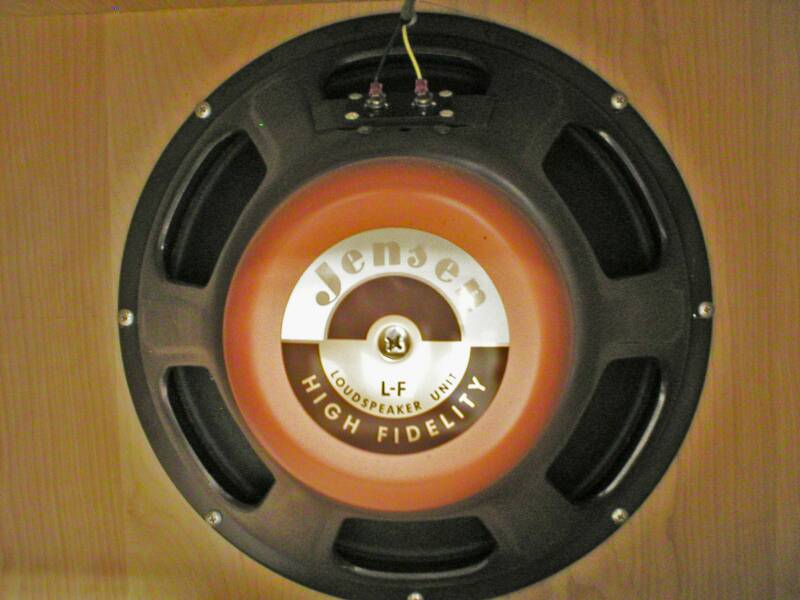

The Low Frequency 15" woofer is model number P15LL and has a date code of 220801  (1st week of 1958)

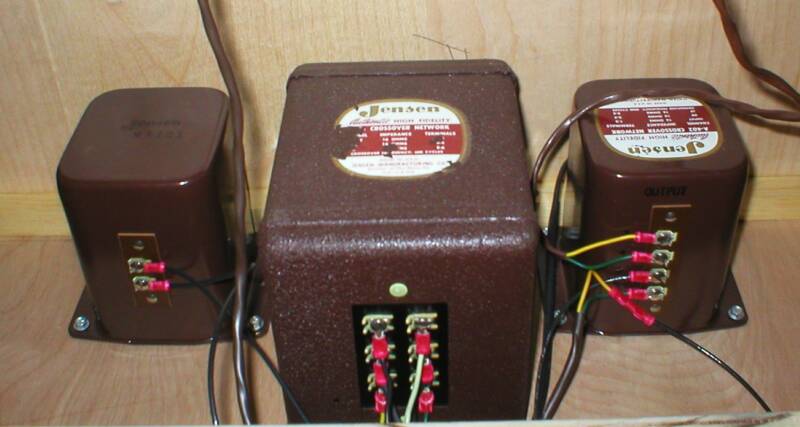

Crossovers consist of three different models. Looking from left to right, they are:

(left) Jensen M 1131

(middle) Jensen A-61

(right) Jensen A-402A

UNIT   # 2

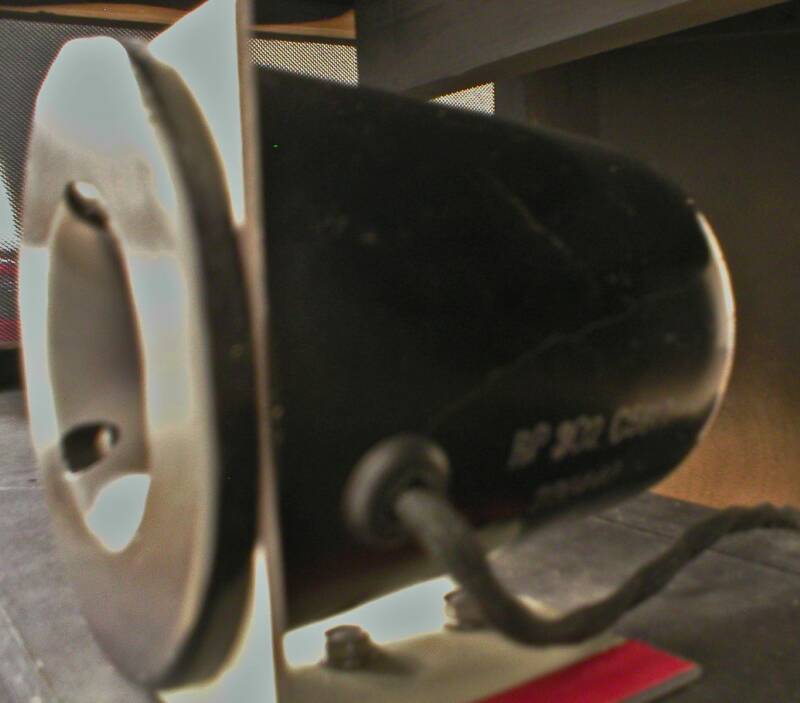

The tweeter is model number RP302 with a date code of 220440

(40th week of 1954 or 1964)

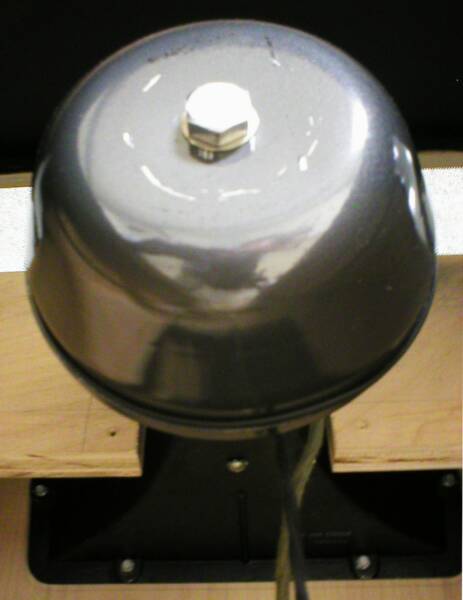

The High Frequency Horn is model number RP201 with date code 220440

(40th week of 1954 or 1964)

The foil Jensen label is missing from the rear of the driver.

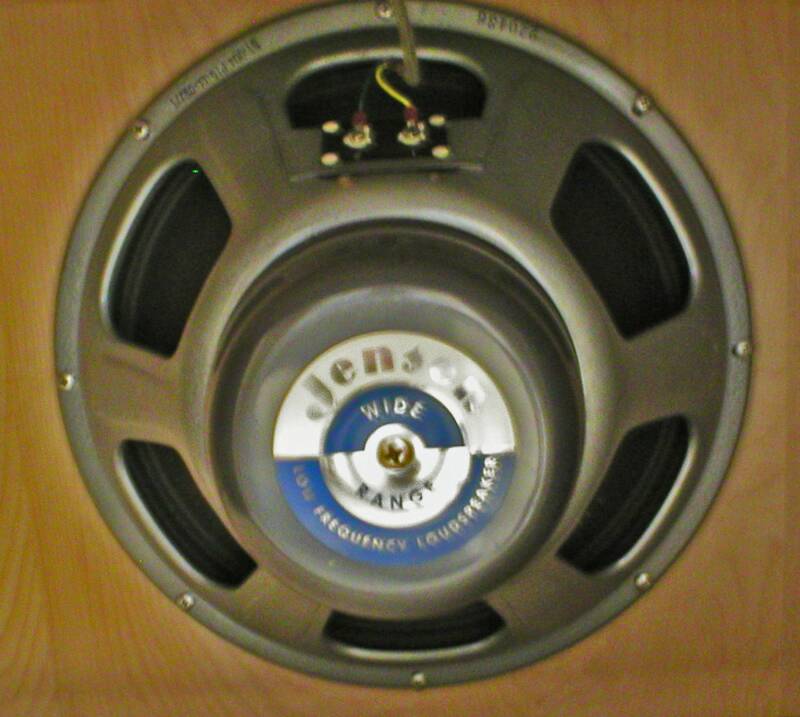

The Low Frequency 15" woofer is model number P15LL and has a date code of 220436

(36th week of 1954 or 1964)

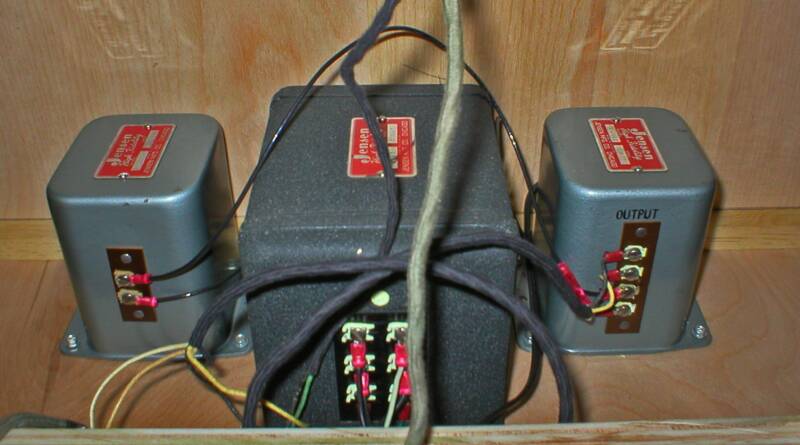

Crossovers consist of three different models. Looking from left to right, they are:

(left) Jensen M 1131

(middle) Jensen A-61

(right) Jensen A-402

BOTH  UNITS

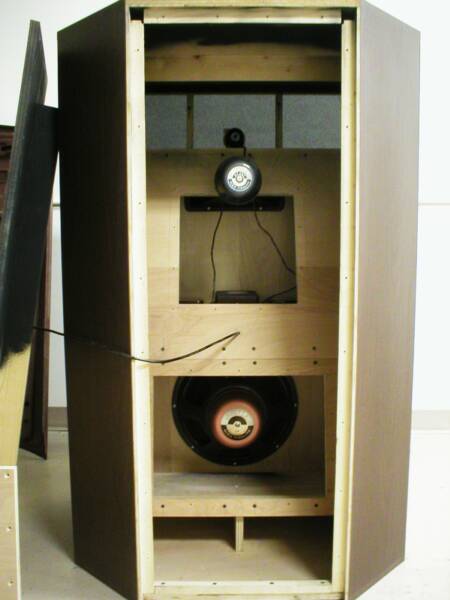

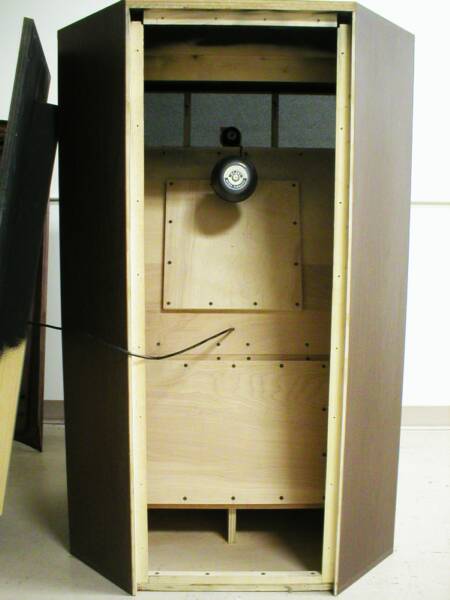

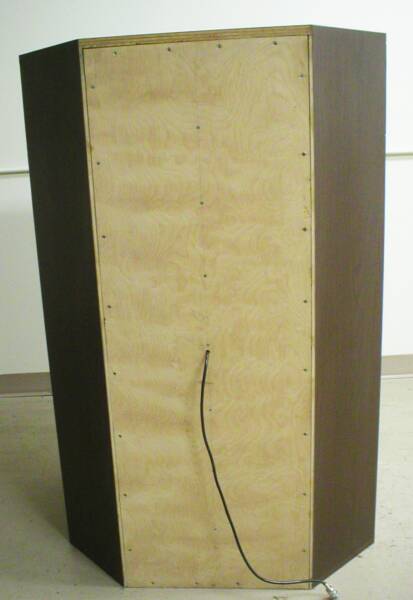

Both cabinets appear to be identical in construction and have the following details.

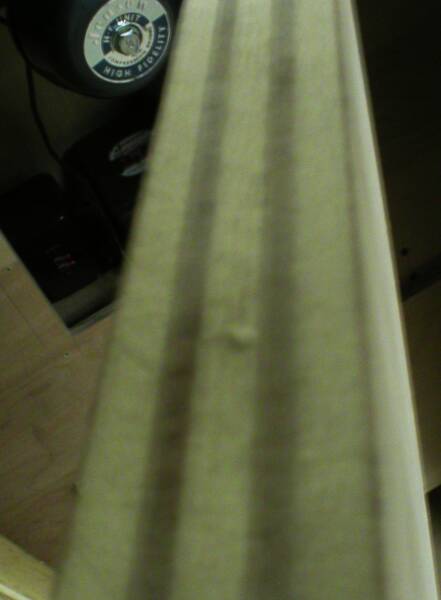

All cabinet construction is of the highest standard using 7-ply 3/4" thick cabinet grade plywood.

APPROXIMATE   DIMENSIONS:

53" high (w / casters not shown)

33" wide

25" deep

APPROXIMATE WEIGHT:

160 pounds each

SOLD!
